Gear Pumps, Application & Troubleshooting
Here's how a gear pump works onboard:
1. Inlet Phase: The pump is initially filled with fluid through the inlet port. As the gears rotate, the fluid is trapped in the spaces between the gear teeth and the pump housing.
2. Meshing Phase: As the gears continue to rotate, the trapped fluid is carried around the outer periphery of the gears. The gears mesh together, creating a seal between the inlet and outlet sides of the pump.
3. Discharge Phase: As the meshing gears rotate, the fluid is forced towards the outlet port. The fluid is squeezed between the gear teeth and the pump casing, resulting in an increase in pressure.
4. Outlet Phase: The pressurized fluid is then pushed out through the outlet port, while the gears continue to rotate, maintaining a constant flow of fluid.
It's important to note that gear pumps are typically self-priming, meaning they can draw fluid into the pump without the need for external priming. This is due to the tight clearances between the gears and the housing, which helps create a vacuum effect, pulling fluid into the pump.
Gear pumps are commonly used in various onboard applications, such as lubrication systems, fuel transfer systems, hydraulic systems, and other applications where a consistent and reliable fluid flow is required. Their simple design, compact size, and ability to handle a wide range of viscosities make them suitable for many marine, automotive, and industrial applications.
Gear pumps are positive displacement pumps that are commonly used for various applications, including onboard operations in different industries such as marine, automotive, and aerospace. The operation of a gear pump onboard typically involves the following steps:
1. Pump Selection: The appropriate gear pump is selected based on the requirements of the specific onboard application, taking into consideration factors such as flow rate, pressure, the viscosity of the fluid being pumped, and space limitations.
2. Mounting: The gear pump is securely mounted in the desired location onboard, ensuring proper alignment with the drive source (such as an electric motor or an engine).
3. Inlet and Outlet Connections: The pump is connected to the fluid source or reservoir through an inlet line, and the outlet line is connected to the destination or the system where the fluid is needed.
4. Priming: If the pump is not self-priming, it may need to be manually primed by filling the pump casing and suction line with the fluid to be pumped. This is typically done before starting the pump.
5. Power Source: The gear pump is powered by an electric motor, engine, or other suitable power sources available onboard. The power source is activated to drive the pump.
6. Rotation: As the power source drives the gear pump, the gears inside the pump housing start rotating. Gear pumps consist of two meshing gears: a driving gear (often connected to the power source) and a driven gear.
7. Fluid Entrapment: As the gears rotate, fluid is entrapped in the space between the gear teeth and the pump casing.
8. Displacement: The rotation of the gears creates a sealed-off volume that traps the fluid and carries it from the inlet side to the outlet side of the pump.
9. Flow Control: The flow rate of the pump can be controlled by adjusting the speed of the power source or by using additional flow control devices such as valves or variable displacement mechanisms, depending on the specific system requirements.
10. Monitoring and Maintenance: During onboard operation, the performance of the gear pump is monitored, and regular maintenance checks are performed to ensure proper functioning. This may include checking for leaks, inspecting gear teeth and seals, and replacing worn-out components.
Gear Pump Diagram :
It's important to note that the specific operation of a gear pump can vary depending on the design and configuration of the pump, as well as the requirements of the onboard system it is serving. Always refer to the manufacturer's guidelines and specifications for detailed instructions on the operation and maintenance of a specific gear pump.
Gear pumps are commonly used in various onboard applications due to their compact size, simplicity, and reliable performance.
Here are a few examples of gear pump applications onboard different systems:
1. Lubrication Systems: Gear pumps are frequently employed in lubrication systems to deliver oil or grease to various moving parts, ensuring proper lubrication and reducing friction. They are commonly found in engines, transmissions, and hydraulic systems onboard vehicles, ships, and aircraft.
2. Fuel Transfer: Gear pumps are utilized for transferring fuel between tanks or from storage tanks to engines. They are commonly employed in automotive, marine, and aviation applications to ensure a consistent and reliable supply of fuel.
3. Cooling Systems: Gear pumps can be used in cooling systems to circulate coolant or refrigerant. They help regulate the temperature of engines, electronic components, and other heat-generating equipment onboard vehicles or machinery.
4. Hydraulic Systems: Gear pumps are widely used in hydraulic systems onboard various vehicles, industrial equipment, and aircraft. They provide the necessary pressure to operate hydraulic cylinders, actuators, and motors, enabling the movement of mechanical components and control of various functions.
5. Bilge Pumping: Onboard boats and ships, gear pumps are often employed as bilge pumps to remove water that accumulates in the hull. They are critical for maintaining buoyancy and preventing flooding in marine vessels.
6. Waste Management Systems: Gear pumps can be utilized in waste management systems onboard ships, recreational vehicles (RVs), or aircraft to pump out wastewater or sewage. They help transport waste to appropriate storage or treatment facilities.
7. Firefighting Equipment: Gear pumps can be integrated into firefighting systems onboard vehicles, ships, or aircraft to deliver water or fire-retardant foam to extinguish fires. They provide the necessary pressure and flow rate for effective firefighting operations.
8. Transfer and Circulation of Fluids: Gear pumps are versatile and can be used for transferring and circulating various fluids on board, such as water, oil, chemicals, and viscous substances. They find application in processes like fluid transfer, filtration systems, and sample analysis equipment.
These are just a few examples of the numerous applications of gear pumps onboard different systems. Their compact design, efficiency, and ability to handle a wide range of fluids make them suitable for various onboard requirements across different industries.
When troubleshooting a gear pump, there are several common issues you can look for and potential solutions you can try.
Here are some steps you can take:
1. Inspect for visible damage: Check the pump housing, gears, shaft, and other components for any signs of wear, damage, or leakage. If you find any damaged parts, they may need to be repaired or replaced.
2. Check for proper lubrication: Gear pumps require proper lubrication for smooth operation. Ensure that the pump is adequately lubricated, and check the oil level and condition. Low or dirty oil can cause issues with pump performance. If necessary, change the oil and clean or replace the oil filter.
3. Verify suction conditions: Ensure that the pump is receiving an adequate and consistent supply of fluid from the suction side. Check for any obstructions, such as clogged filters or lines, and clear them if necessary. Insufficient suction can lead to poor pump performance or cavitation.
4. Evaluate discharge conditions: Examine the discharge side of the pump for any restrictions or blockages. Make sure the discharge line is clear and properly sized. If there are any valves or fittings in the line, check if they are functioning correctly.
5. Assess the drive system: If the pump is driven by a motor or other power source, inspect the drive system for any issues. Check the motor's operation, belts, couplings, or other connections for proper alignment and functioning. Misalignment or mechanical problems in the drive system can affect pump performance.
6. Monitor pump temperature: Pay attention to the temperature of the pump during operation. Overheating can be an indication of problems such as excessive friction or insufficient lubrication. Ensure that the pump is not operating outside its recommended temperature range.
7. Measure flow and pressure: Use appropriate gauges and instruments to measure the pump's flow rate and pressure. Compare these measurements to the pump's specifications to determine if it is operating within the expected range. Deviations from the desired values can indicate issues with the pump or the system it is connected to.
8. Consider the fluid properties: Different fluids have varying characteristics that can affect pump performance. Verify that the pump is compatible with the fluid being pumped, including its viscosity, temperature, and chemical composition. Some fluids may require specific pump materials or modifications.
9. Consult the manufacturer's documentation: Review the pump's operation and maintenance manual or contact the manufacturer for specific troubleshooting guidance. They may provide further insights or recommend additional steps based on the pump model and application.

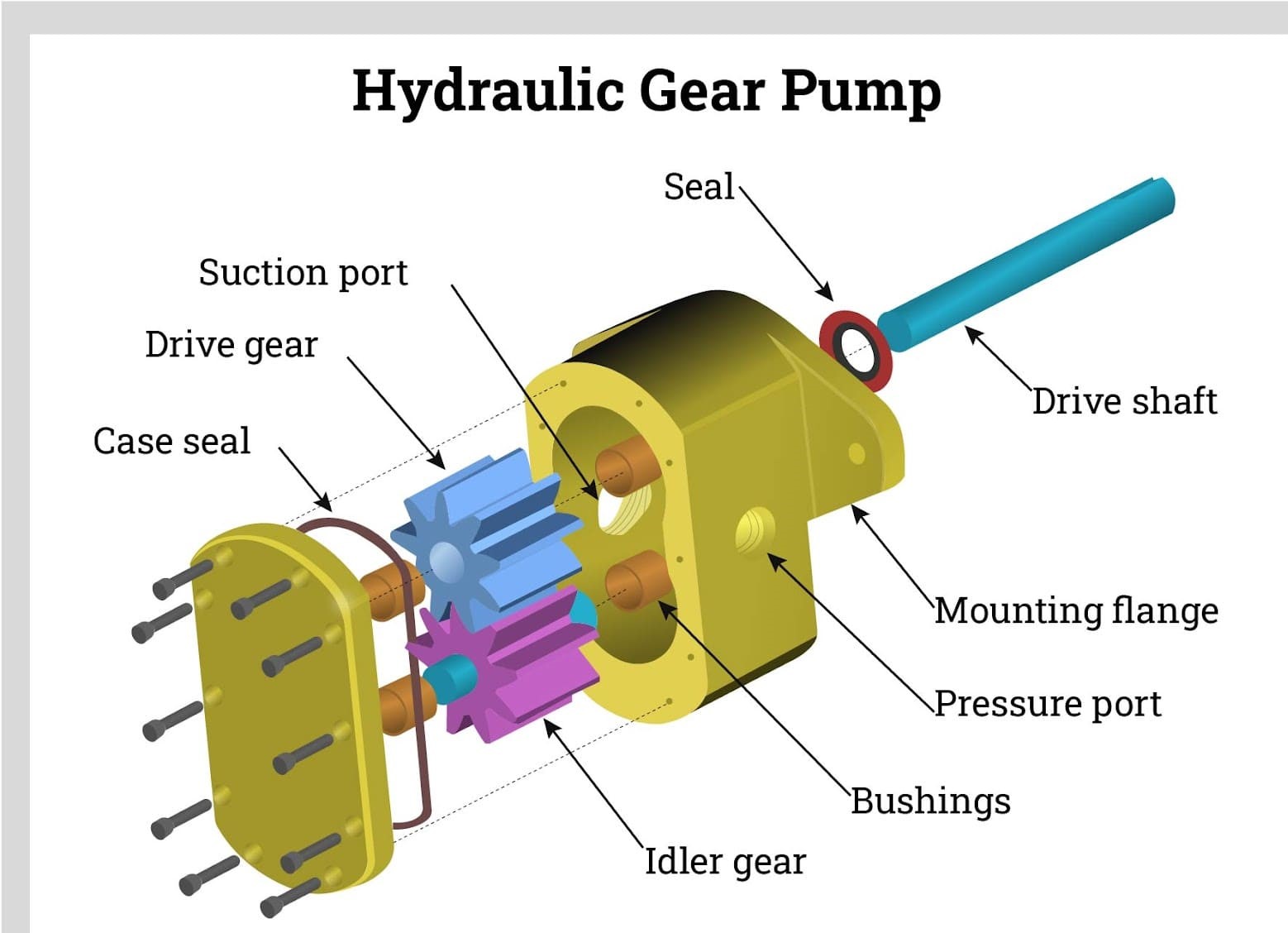

Gear Pump Parts Diagram :
If the troubleshooting steps above do not resolve the issue, it may be necessary to consult a qualified technician or pump specialist who can provide more in-depth analysis and repair assistance.
